J&M JAMP-500HR11-ULP - ROKKER P500W 4-CH AMP KT 11-13 ROADGLIDE ULTRA ONL

SPECIFICATIONS

J&M ROKKER XT-P 500w 4-CH Amplifier kit 11-13 Harley® RoadGlide Ultra

This exciting new J&M DSP controlled 4-channel 500w fairing/rear speaker amplifier kit has been design specifically for use in the 2011-2013 Harley® RoadGlide Ultra (only) with the Harley HK radio.

This is a full range class G digital amplifier and is spec’d at 125watts RMS per channel X4 channels, (500w total) driven continuous into a 2 ohm load @ 14.4vdc.

These new ROKKER XT -P series amplifiers are now fully programmable thru the internal digital signal processor (DSP) and come out of the box already dialed in for this specific RoadGlide Ultra speaker configuration, to provide maximum highway performance from your Harley Davidson audio system.

Should you wish to alter these settings (as when adding additional speakers to the system, adding a subwoofer, or changing the impedance of the speakers), J&M will be offering all of our specific custom pre-loaded amplifier programs as a consumer download from the J&M .

This will require the purchase of the J&M USB programming dongle and cable assembly (extra cost item) to be used with most computers, along with the free software program download. ((More details to be released soon)).

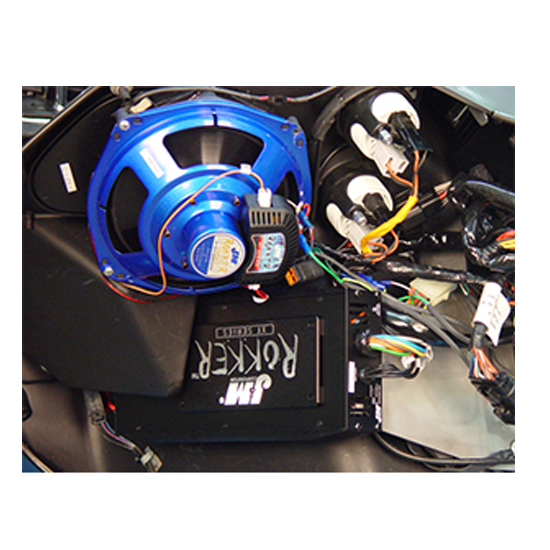

Amplifier mounts to the custom made stainless steel bracket system, to provide solid and secure mounting inside the RoadGlide fairing.

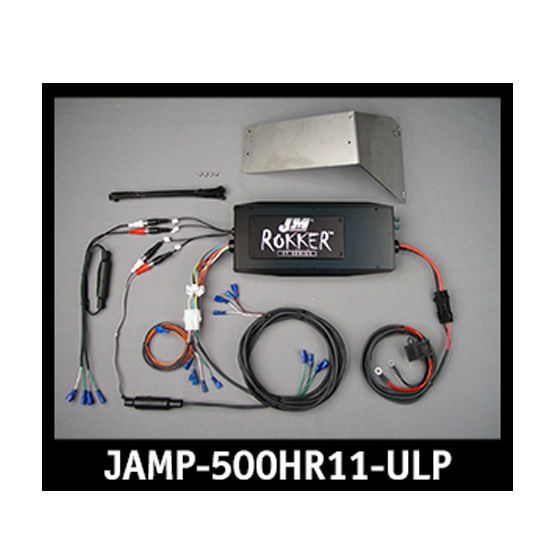

Custom made plug-n-play wiring harnesses are included with this amplifier kit, top quality heavy gauge power/ground wires are used for the fused battery connection, along with all necessary mounting hardware & complete installation/operation instructions.

Amplifier itself measures 10 5/8” Long X 5” Wide (widest point) X 1 5/8” Tall.

Téléchargements

JAMP-500HR11-ULP 5-13 (1).pdf	Télécharger
